Device Name / Brand / Model

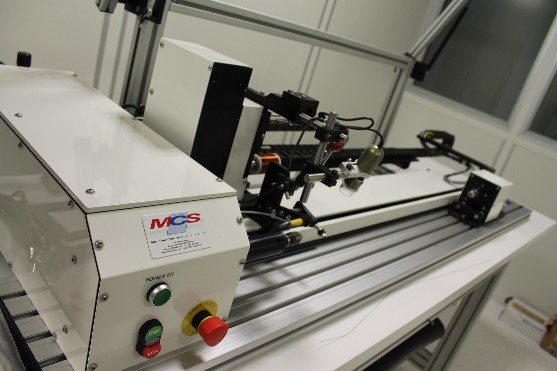

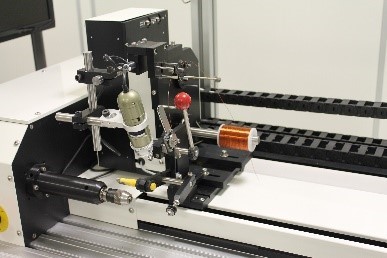

• Name: Precision Medical Wire Winding (Coil Winding) System – Mandrel Winding / Continuous Winding
• Brand: MACHINE CONTROL
• Model: SPECIALIST
Overview
The MACHINE CONTROL SPECIALIST is a purpose-built wire winding system designed for precision medical coil manufacturing. With Mandrel Winding and Continuous Winding capabilities, it supports high-precision winding workflows used to produce coil components commonly found in catheters, guidewires, endoscopes, stents, and other delicate medical coils. The system offers flexible processing across a range of wire and mandrel/tube diameters. (Note: The system status is tracked as “In operation”.)
Purpose / Output
• Precision winding of medical coils on mandrels or tubes
• Repeatable coil geometry generation via continuous winding
• Prototyping and process development for coil-based components in medical devices
• Design/performance optimization across multiple diameter ranges
Application Areas
• Catheter components and reinforcements (coil structures)
• Guidewires
• Endoscope components
• Stent and stent-like structures
• Other precision medical coil/component manufacturing
Highlights
• Flexible production options with mandrel winding and continuous winding modes
• Capability to wind very small-diameter wires (down to 0.001 in)
• Broad mandrel/tube diameter range supporting diverse designs
Technical Specifications
| Feature | Value / Description |
|---|---|
| Winding modes | Mandrel Winding + Continuous Winding |
| Application focus | Precision medical coil manufacturing |
| Typical wire diameter range | 0.001 – 0.035 in (0.025 – 0.889 mm) stainless-steel wire |
| Typical mandrel/tube diameter range | 0.001 – 0.375 in (0.025 – 9.52 mm) |
| Typical applications | Catheters, guidewires, endoscopes, stents, and other precision medical coils |
| Usage note | In operation |
Contact / Service Request
For service requests: you may email [email protected]. (Please specify the sample type, purpose, and preferred date range.)
